Connecting the Laboratory: An Interoperability Guide for Hospital Teams

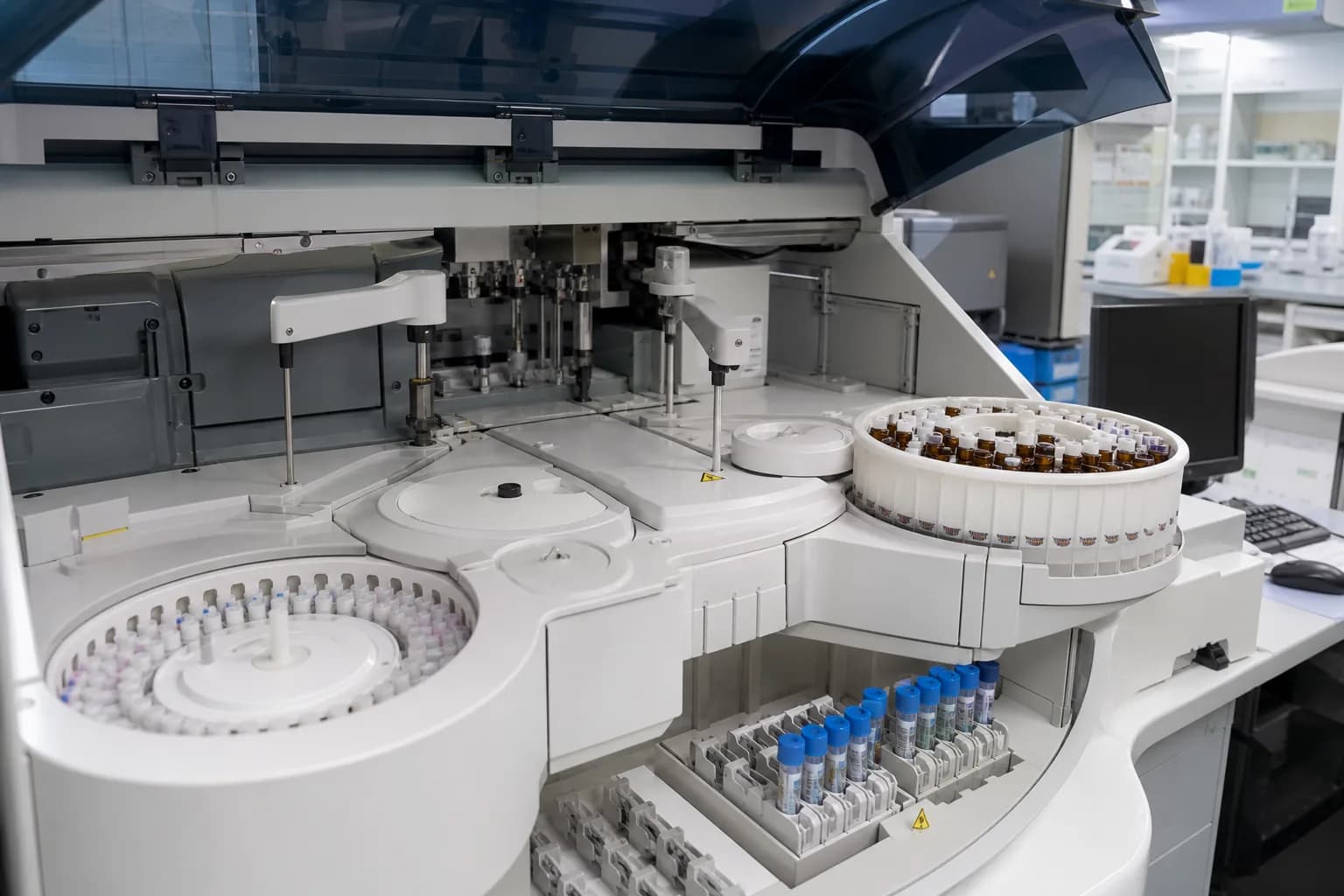

A unidirectional interface sends results from the analyzer and requires the worklist to be loaded manually or by barcode read at the instrument. A bidirectional interface also receives the order, so the analyzer knows which tests to run on a given tube. The second removes a transcription step and a common source of wrong-test-on-right-patient errors, but it demands accurate accessioning before the tube reaches the bench.

Middleware sits between instruments and the laboratory system, handling rules, quality-control logic, and repeat management for a bank of analyzers. It earns its cost in high-volume chemistry and haematology and rarely does so for a laboratory running three instruments. Whichever route is chosen, agree where autoverification rules live, because rules split across middleware and the laboratory system are difficult to validate and harder to change.

The order message carries patient, encounter, ordering clinician, test, priority, specimen requirements, and clinical details; the result message returns values, units, reference intervals, abnormal flags, status, and performing location. Status is where most implementations go wrong. Preliminary, final, corrected, and cancelled must each map to a state the receiving system displays distinctly, or a corrected result quietly overwrites the original in the chart.

Test with realistic content rather than clean samples. Include textual results, results with comments, panels where one component failed, specimens rejected after the order was sent, and corrections issued after a report was printed. HealUDoc represents result status and version explicitly, so a downstream view can show that a value was amended and when, instead of presenting the latest number as though it had always been there.

Referred tests are the least-governed part of most laboratory interfaces. Orders leave by courier manifest or a partner portal, results return as document attachments, and a technologist retypes the values or files the file against the patient. Neither route produces structured data, so send-out results never appear in trend graphs and the associated charges are reconciled by hand at month end.

Push for structured return where the reference laboratory supports it, and map their test codes into your governed catalogue with the performing laboratory recorded on the result. Where only a document is available, ensure it attaches to the correct order and that the pending state stays visible until it arrives. HealUDoc keeps referred work in the lab queue with an expected return date, so a specimen sent out does not disappear from view.

The same result feeds several destinations under different rules. Billing should react to performance events rather than order entry, so a cancelled or rejected specimen does not generate a charge. The patient portal should publish only verified results and respect release policy for sensitive tests and criticals still awaiting acknowledgement. Analytics needs the full history including superseded versions, which the other two deliberately hide.

Build these as separate consumers of a single authoritative result rather than three parallel interfaces from the analyzer. HealUDoc links laboratory events to billing and portal publication from the same verified record, which prevents the familiar failure where a patient sees a value in the portal that the ward has not yet been told about, or receives an invoice for a test that was never performed.

Interfaces degrade quietly. A vendor updates analyzer firmware and adds a flag code nobody has mapped; a payer changes a file format; a branch renames a location and messages start rejecting. Without monitoring, the first sign is a clinician asking why a result never arrived, several days after the queue began filling. Silent failure is the normal failure mode, not the exception.

Assign a named owner, alert on queue depth and rejected messages, and review the error log weekly rather than when someone complains. Keep a test environment that mirrors production so changes can be validated before release, and version every mapping change with a reason. HealUDoc's activity logs record what each interface wrote and when, which shortens the investigation whenever a value in the chart does not match the one on the bench.
